SPD3303X / SPD3303X-E Series Programmable DC Power Supplies

Product Overview

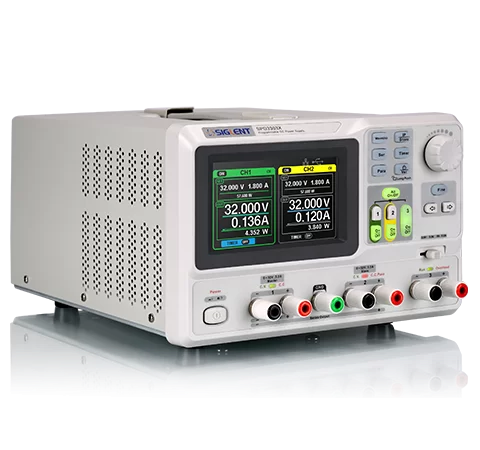

Siglent’s SPD3303X & SPD3303X-E Series Programmable Linear DC Power Supplies have a 4.3 inch TFT-LCD display, support Remote Programming and have Real Time Wave Displays. The SPD3000X Series has three isolated outputs; two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V. It also has output short and overload protection and can be used in production and development.

Key Features

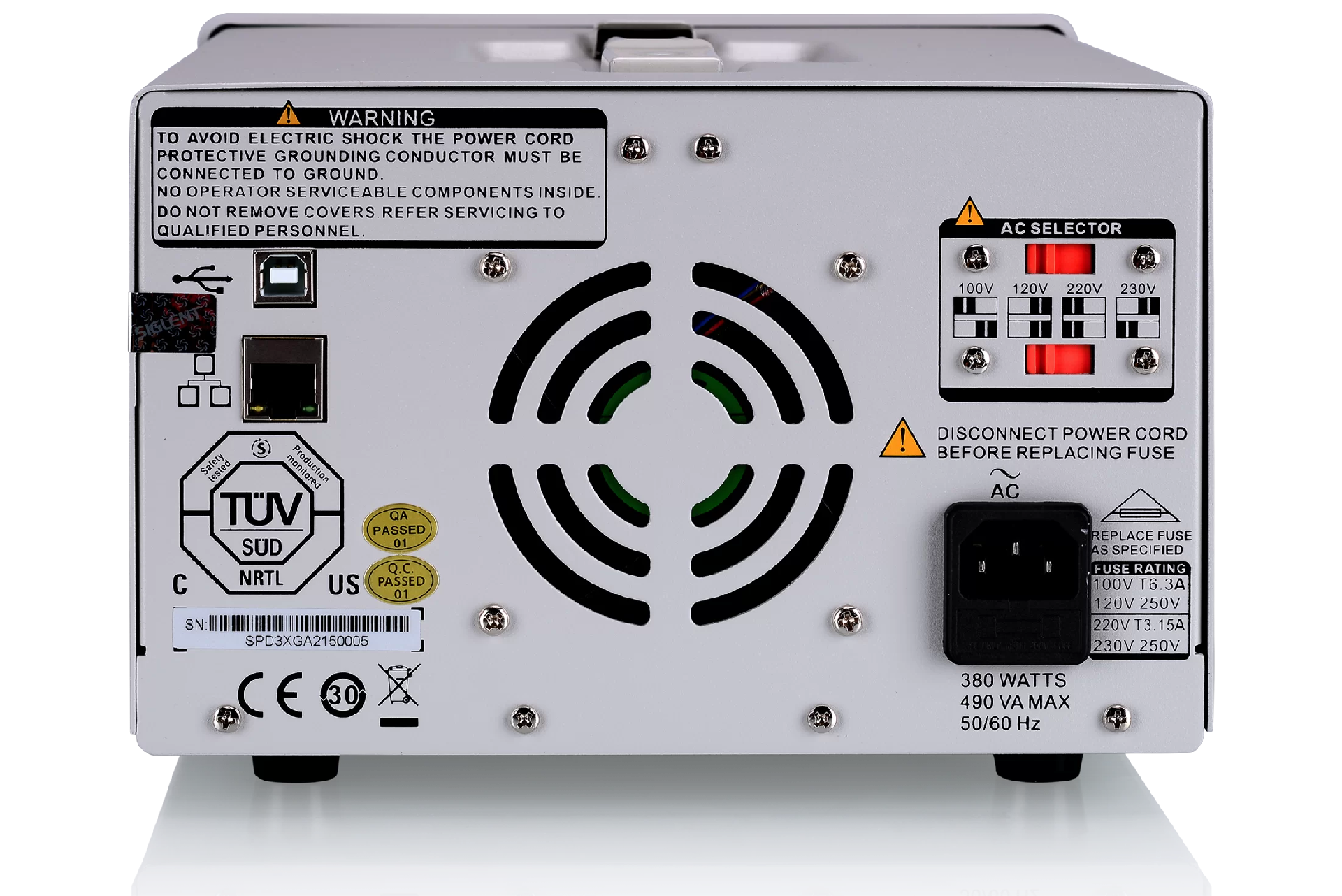

• 100/120/220/230 V compatible design to meet the needs of different power grids

• Intelligent temperature-controlled fan effectively reduces fan noise

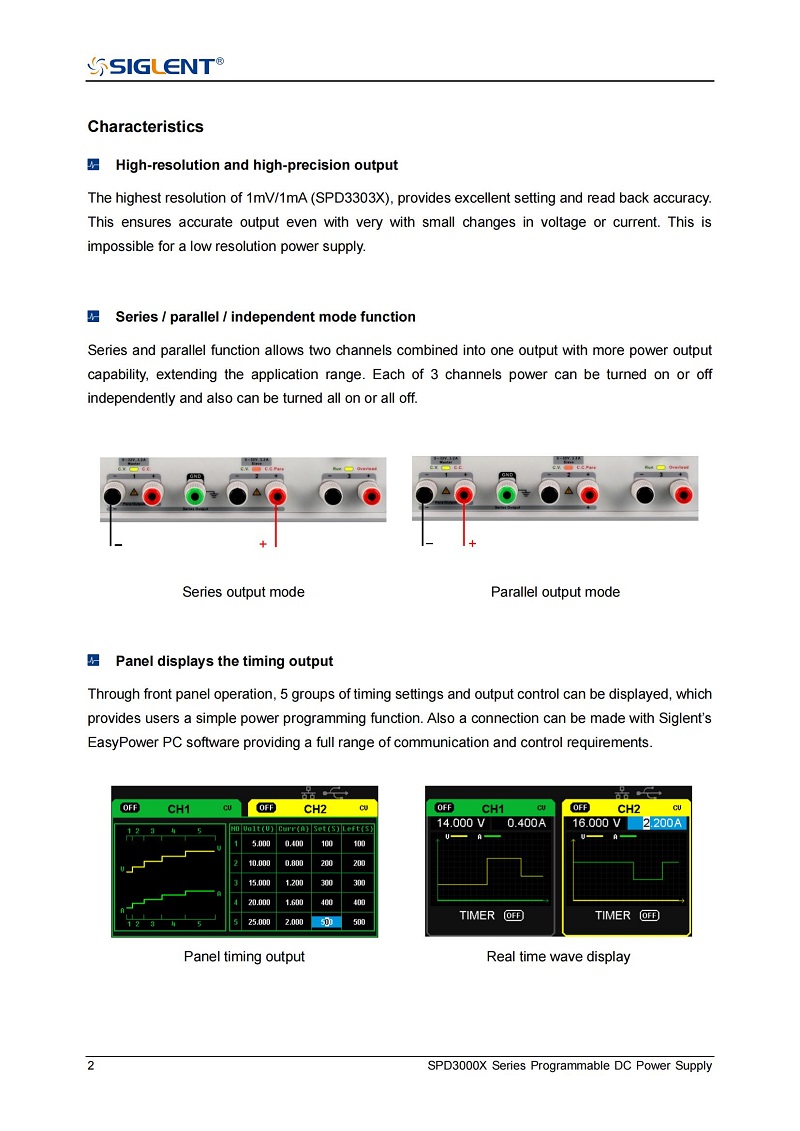

• Clear graphical interface, with waveform display function

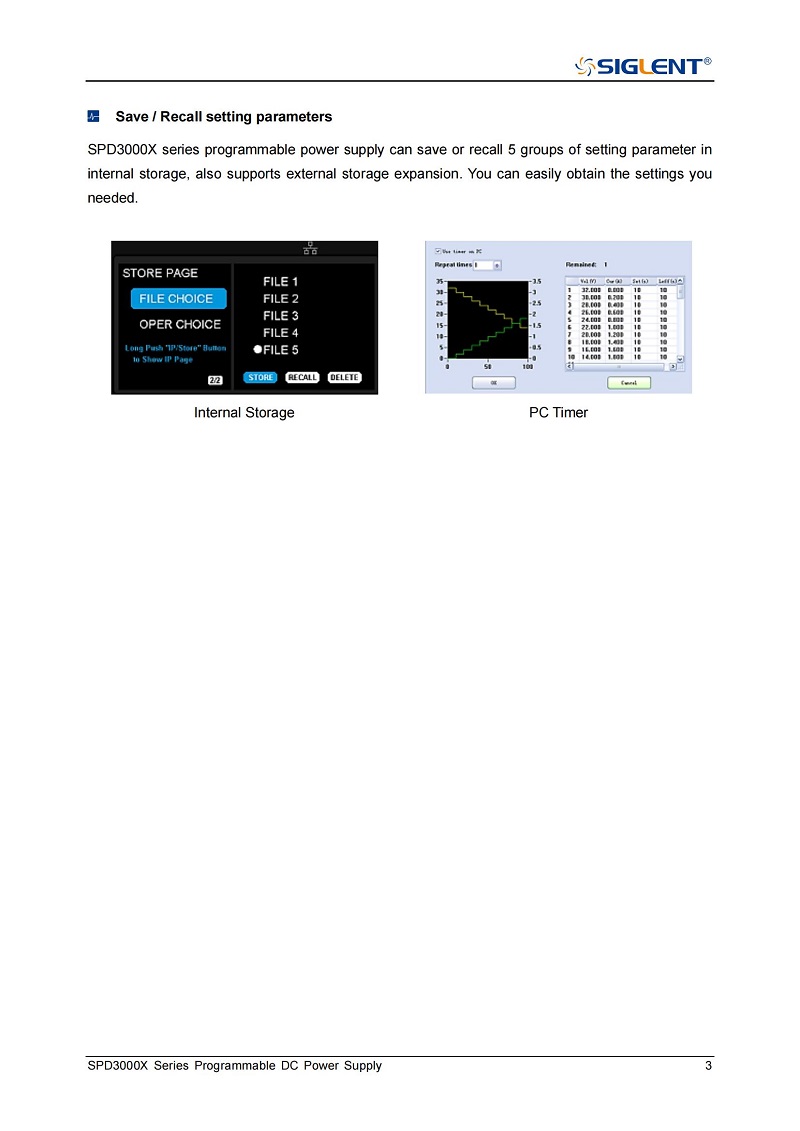

• Five internal groups of system parameter save/recall, supports data storage space expansion

• Free PC software: Easypower. Also supports remote programming and includes a LabView driver
