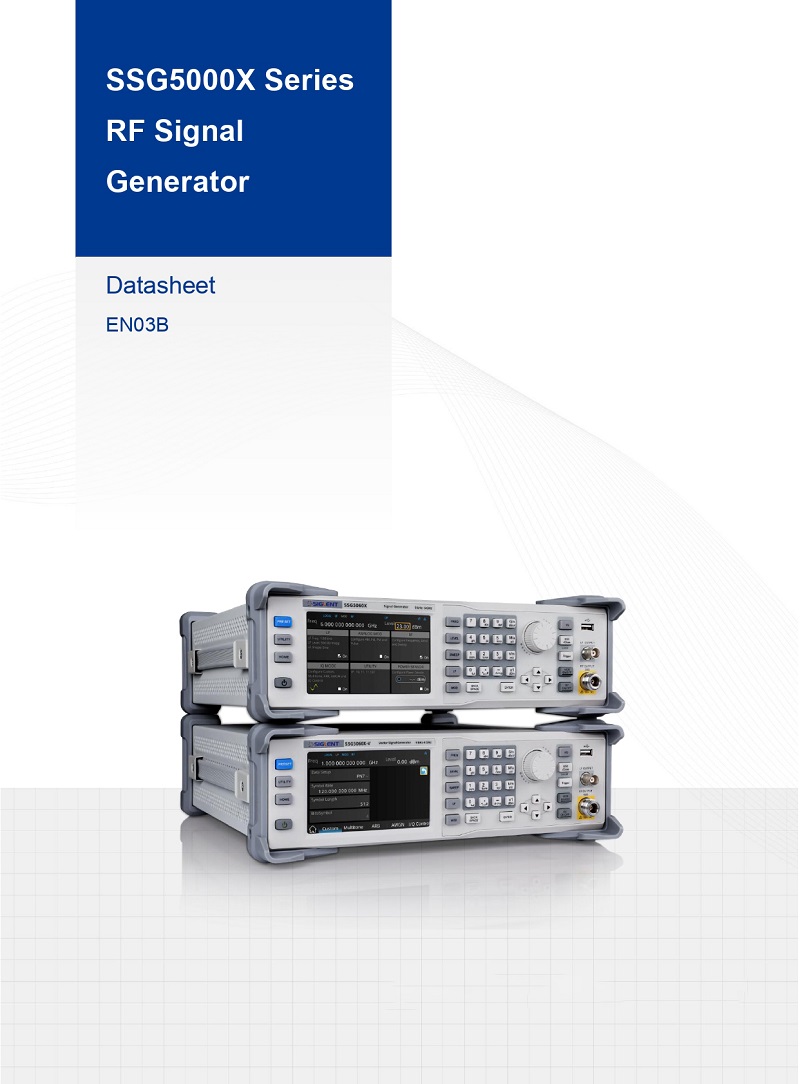

SSG5000X Series of Signal Generators

• Frequency up to 4 GHz/6 GHz

• 0.001 Hz frequency setting resolution

• Maximum output power up to +26 dBm (typ.)

• Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)

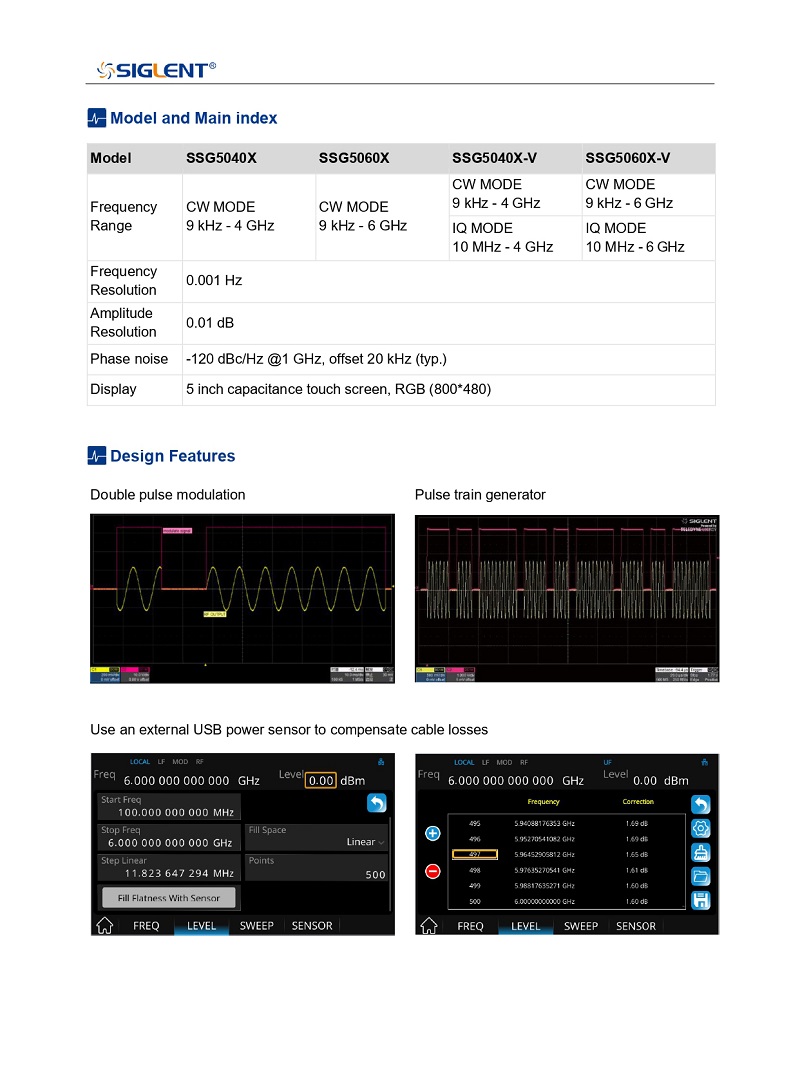

• Single pulse, double pulse and pulse train generator (option)

Key Features

• Frequency up to 4 GHz/6 GHz

• 001 Hz frequency setting resolution

• Maximum output power up to +26 dBm (typ.)

• Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)

• User-programmable flatness correction

• Provides AM, FM, and PM analog modulation with internal, external, or Int+Ext source

• Single pulse, double pulse, and pulse train generator (option)

• Internal IQ modulation with 150 MHz modulation bandwidth with perfect in-factory calibration

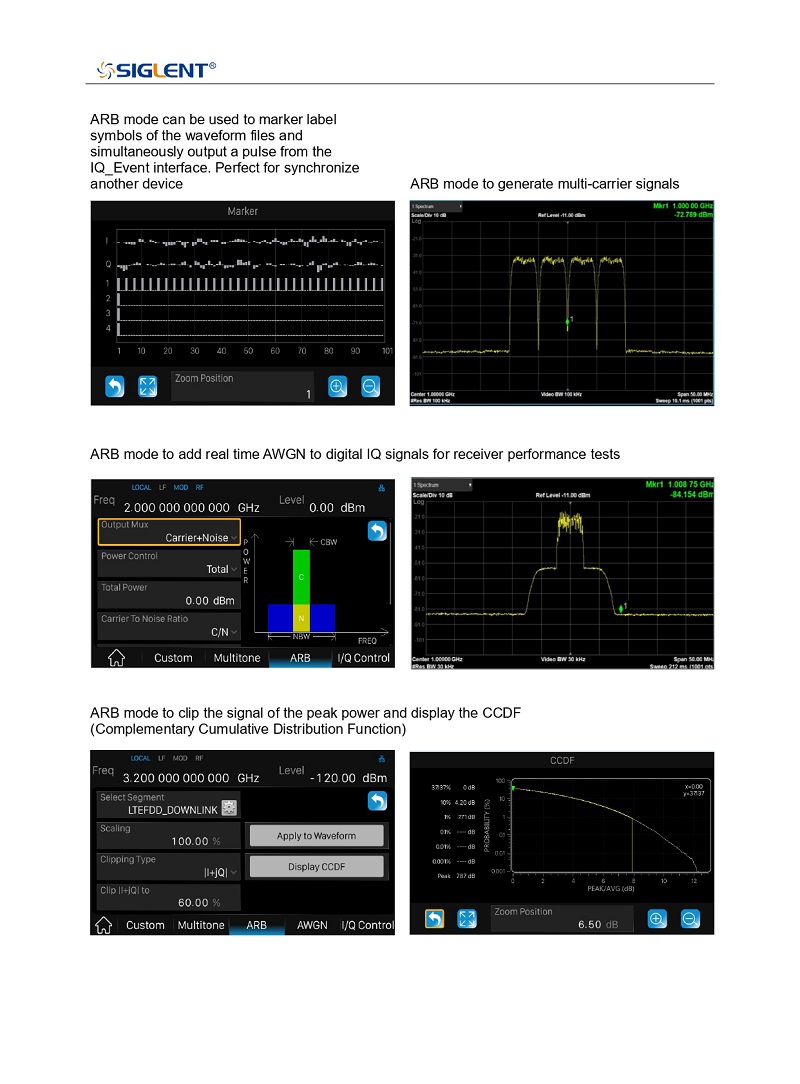

• Built-in digital communication standard waveform sample files such as 5G-NR, LTE, WCDMA, WLAN, Blue-Tooth, CDMA

• Internal Custom mode to generate common IQ signals such as QAM, FSK, ASK, MSK

• Analog differential I/Q outputs

• External analog I/Q input

• USB-power meter measurement

• 5-inch TFT capacitive touch screen, mouse, and keyboard support

• Web browser remote control on PC and mobile terminals

• The standard interface includes a USB Host, USB Device (USB TMC), and LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
